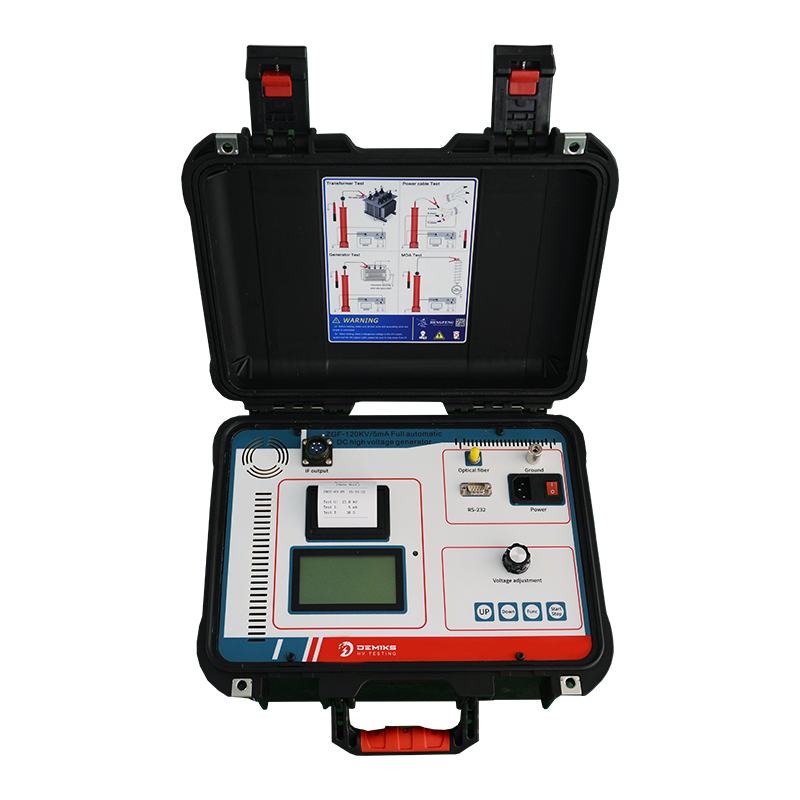

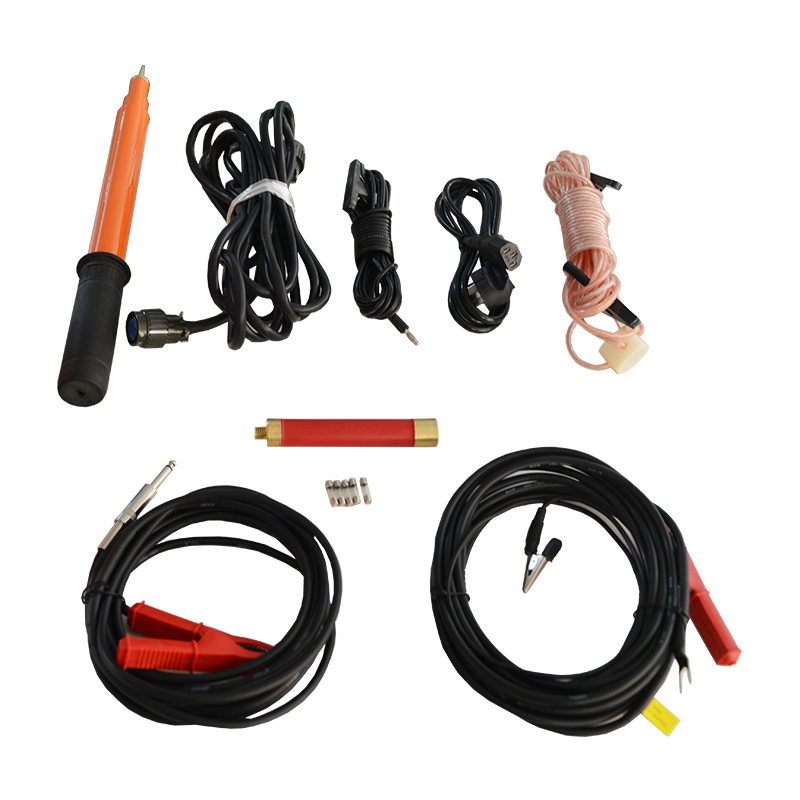

ZGF-120kV5mA Automatic DC High Voltage Tester

Model: ZGF-120kV5mA  DC High Voltage Tester

Application:

This instrument is suitable for conducting DC withstand voltage tests or DC leakage current tests on high-voltage electrical equipment such as zinc oxide arresters, power cables, transformers, circuit breakers, and generators.

Feature:

1. The output voltage is stable, and a high-frequency voltage doubling circuit is adopted.

2. It has a complete set of protection functions and is equipped with a nanosecond-level dedicated sensor.

3. It has the 0.75U function and can automatically switch to the 0.75U state.

Specification:

Technical Parameters/specifications120/5rated voltage（kV）120rated current（mA）5rated power（W）600Quality of the control box (kg)5.5Quality of the voltage doubling cylinder (kg)8.7Height of the voltage doubling cylinder (mm)970Accuracy of the output voltage± (1.0% of the reading + 2 digits)Accuracy of the output current± (1.0% of the reading + 2 digits)Ripple coefficient≤0.5%Voltage stabilityWhen power supply voltage varies ±10%, ≤1%.Overload capacityThe no-load voltage can exceed the rated voltage by 10% and be used for 10 minutes.

The maximum charging current is 1.25 times the rated current.PowerSingle-phase alternating current, 50Hz, 220V±10%Working modeIntermittent use: rated load for 30 minutesUse at 1.1 times the rated voltage: 10 minutesWorking environmentTemperature: -10℃ to 40℃Relative humidity: It should not be greater than 85% (without condensation) when the room temperature is 25℃.Altitude: Below 1,500 metersLoad capacity with capacitorThe capacitance of the device under test is unrestricted.It can be charged with 1.5 times the rated current.Structural characteristicsElectrical insulation voltage doubling cylinderAir insulation, eliminating concerns about leakage.Features of the operation boxHigh-precision 0.75UDC1mA single-touch button (accuracy ≤ 1.0%)

Suitable for the test of zinc oxide surge arresters. The overvoltage protection adopts a digital DIP switch, which is clear at a glance.Portable chassis makes it more convenient on site.
